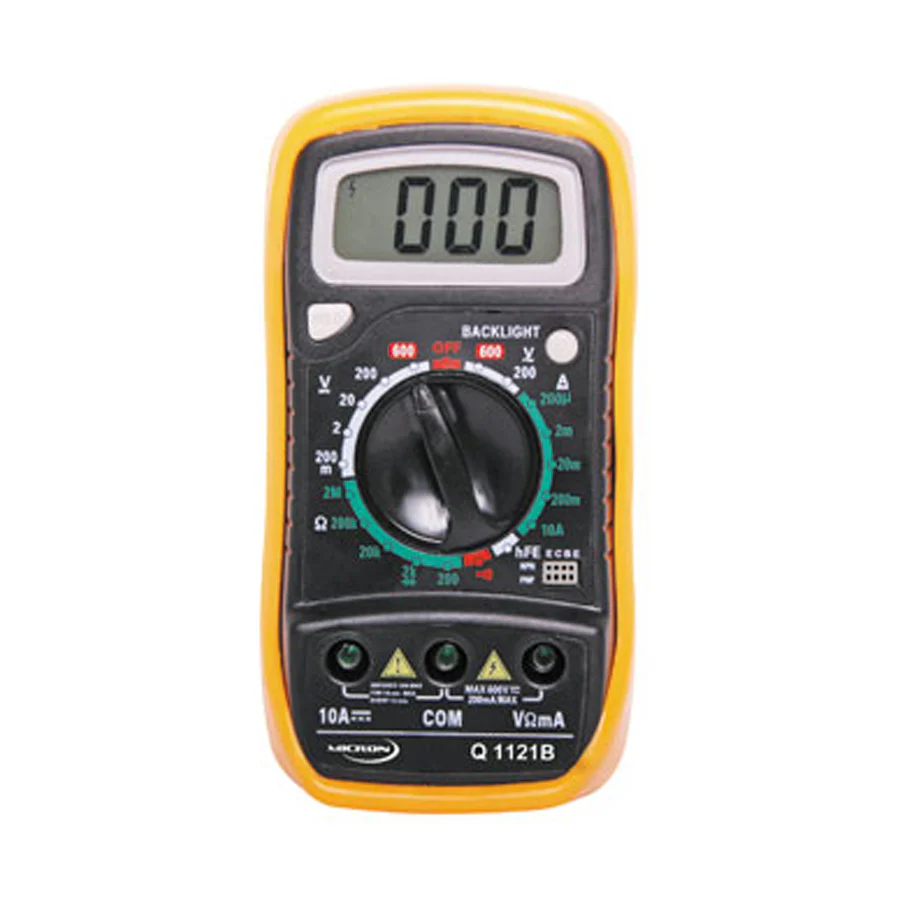

19 Range Digital Multimeter With Data Hold | Q1121B
This 3.5 digit digital multimeter features 19 ranges, an in-built hFE transistor and diode test function. Backlit screen and data hold functions are great for measuring in the field. Perfect for the cash strapped student or budding enthusiast. Supplied with test leads & rubber holster.
Includes a 9V battery
Includes a 9V battery
Features
- Large display with backlight
- Low battery indicator
- Data hold function
- Transistor tester
- Current measurement
- Voltage measurement
- Diode tester
- 1x 9V Battery included
- Cat II
Ā
- Voltage DC: 200mV, 2V, 20V, 200V, 600V (Ā±0.8%+2d)
- Voltage AC: 200V, 600V (Ā±1.2%+10d)
- Current DC: 2mA, 20mA, 200mA, 10A (Ā±1.5%+2d)
- Resistance: 200Ī©, 2kĪ©, 20kĪ©, 200kĪ©, 2MĪ© (Ā±1%+8d)
- Diode test: Included
- Transistor test: Measures hFE, NPN/PNP identification
- Display: 3.5 digit LCD, 1999 count
- Protection: 500mA M205 fused on all inputs except 10A range
- Dimensions: ā 72W x 40D x 145H mm
*Specifications are subject to change without notice.
$8.75
Original: $25.00
-65%19 Range Digital Multimeter With Data Hold | Q1121Bā
$25.00
$8.75More Images
19 Range Digital Multimeter With Data Hold | Q1121B
This 3.5 digit digital multimeter features 19 ranges, an in-built hFE transistor and diode test function. Backlit screen and data hold functions are great for measuring in the field. Perfect for the cash strapped student or budding enthusiast. Supplied with test leads & rubber holster.
Includes a 9V battery
Includes a 9V battery
Features
- Large display with backlight
- Low battery indicator
- Data hold function
- Transistor tester
- Current measurement
- Voltage measurement
- Diode tester
- 1x 9V Battery included
- Cat II
Ā
- Voltage DC: 200mV, 2V, 20V, 200V, 600V (Ā±0.8%+2d)
- Voltage AC: 200V, 600V (Ā±1.2%+10d)
- Current DC: 2mA, 20mA, 200mA, 10A (Ā±1.5%+2d)
- Resistance: 200Ī©, 2kĪ©, 20kĪ©, 200kĪ©, 2MĪ© (Ā±1%+8d)
- Diode test: Included
- Transistor test: Measures hFE, NPN/PNP identification
- Display: 3.5 digit LCD, 1999 count
- Protection: 500mA M205 fused on all inputs except 10A range
- Dimensions: ā 72W x 40D x 145H mm
*Specifications are subject to change without notice.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This 3.5 digit digital multimeter features 19 ranges, an in-built hFE transistor and diode test function. Backlit screen and data hold functions are great for measuring in the field. Perfect for the cash strapped student or budding enthusiast. Supplied with test leads & rubber holster.
Includes a 9V battery
Includes a 9V battery
Features
- Large display with backlight
- Low battery indicator
- Data hold function
- Transistor tester
- Current measurement
- Voltage measurement
- Diode tester
- 1x 9V Battery included
- Cat II
Ā
- Voltage DC: 200mV, 2V, 20V, 200V, 600V (Ā±0.8%+2d)
- Voltage AC: 200V, 600V (Ā±1.2%+10d)
- Current DC: 2mA, 20mA, 200mA, 10A (Ā±1.5%+2d)
- Resistance: 200Ī©, 2kĪ©, 20kĪ©, 200kĪ©, 2MĪ© (Ā±1%+8d)
- Diode test: Included
- Transistor test: Measures hFE, NPN/PNP identification
- Display: 3.5 digit LCD, 1999 count
- Protection: 500mA M205 fused on all inputs except 10A range
- Dimensions: ā 72W x 40D x 145H mm
*Specifications are subject to change without notice.
