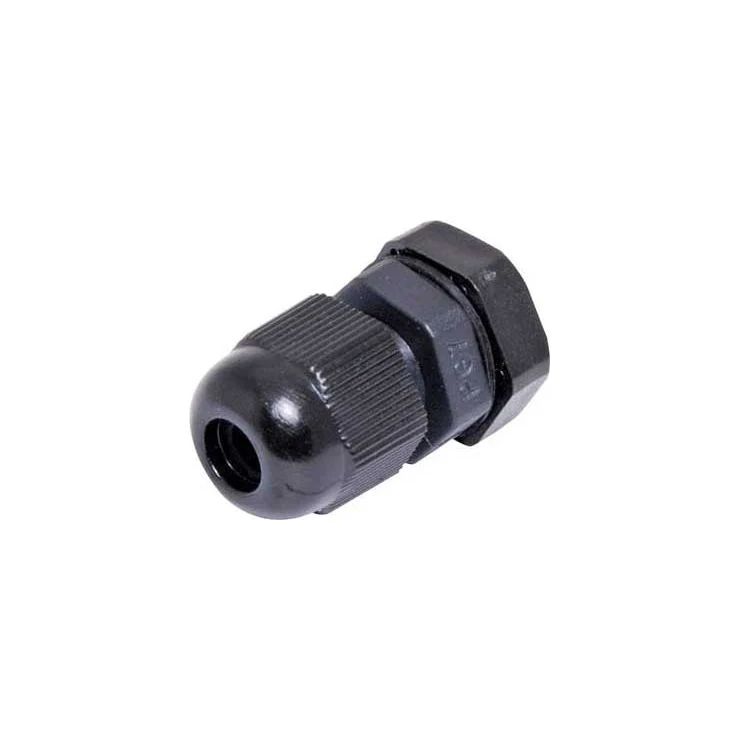

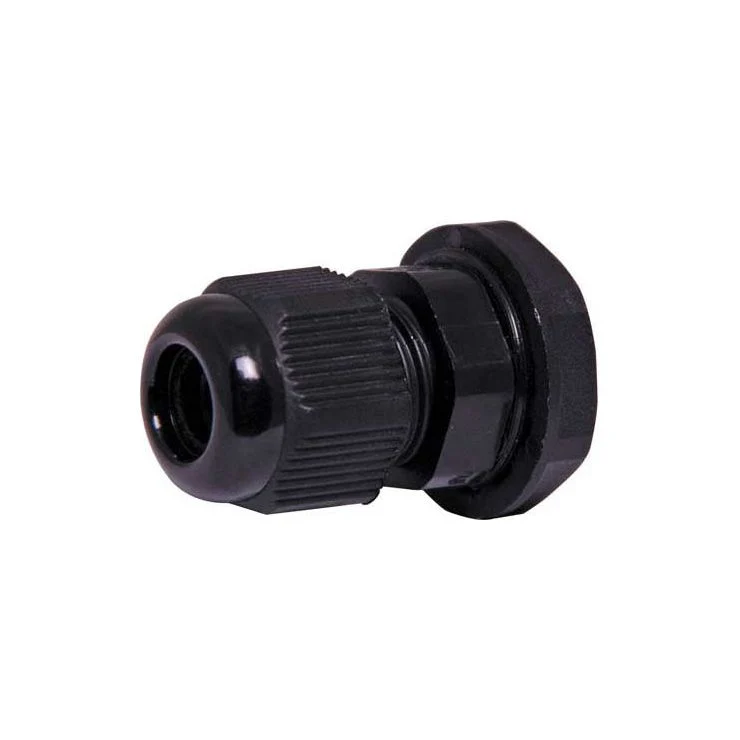

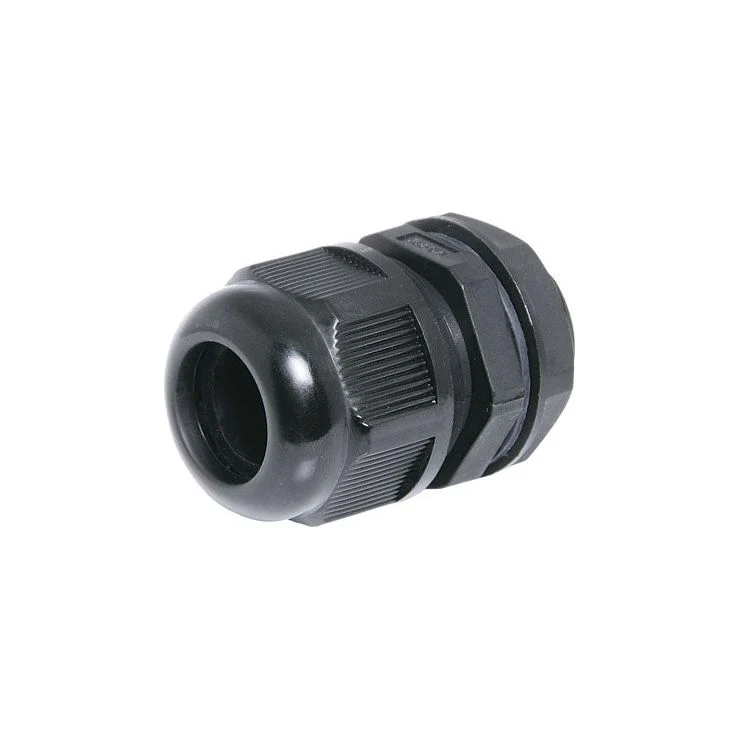

BLACK IP68 Nylon Cable Gland Grommet Various Sizes

Available options;

• 2-5mm
• 3-6.5mm
• 4-8mm
• 5-10mm
• 5-10mm RIGHT ANGLE
• 6-12mm
• 13-18mm

Right Angle:

Multi-piece right angle cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. The 90° angle prevents damage to cable sheathing that can occur in tight installations.

Cable Size: 5-10mm
Chassis Hole: 18.5mm
External Depth from Panel or Chassis: 33mm

13-18mm:

Thread: MG25
Cable entry: 13-18mm
Panel cutout diameter: 25mm
Depth from chassis: 38mm

6-12mm:

PG13.5 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Mounting hole Ø 20mm.

5-10mm:

PG11 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Standard gland suits cable diameter 5mm to 10mm. Mounting hole Ø 18.5mm

4-8mm:

PG9 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Standard gland suits cable diameter 4mm to 8mm. Mounting hole Ø 15mm.

3-6.5mm:

PG7 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Standard gland suits cable diameter 3mm to 6.5 mm. Mounting hole Ø 12.5mm.

2-5mm:

PG7 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Standard gland suits cable diameter 2mm to 5mm. Mounting hole Ø 12.5mm.
