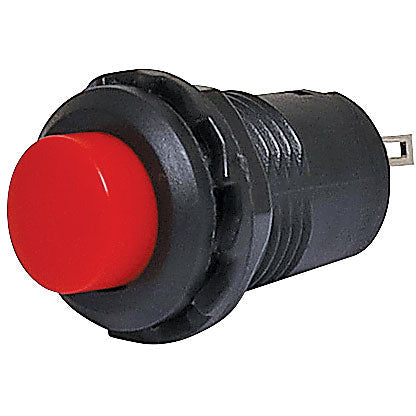

Push button Switch - RED | PB

Low profile red push button switch with solder tail connection. Ideal for panel mounting into projects or rack equipment etc.

Push once and the button will HOLD ON

Push again to release and turn OFF

Note: This button is NOT momentary



Rated Voltage: 125V AC @ 3A

Rated Current: 250V AC @ 1.5A

Insulation Resistance: 500V DC 100MΩ (min)

Contact Resistance: 50MΩ max

Dielectric Strength: 1000V DC, 1 minute

Operating Temperature: -20°C to +85°C

Electrical Life: 10,000 cycles (min)

Mechanical Life: 50,000 cycles (min)

Function: Alternate action

Button Colour: Red
