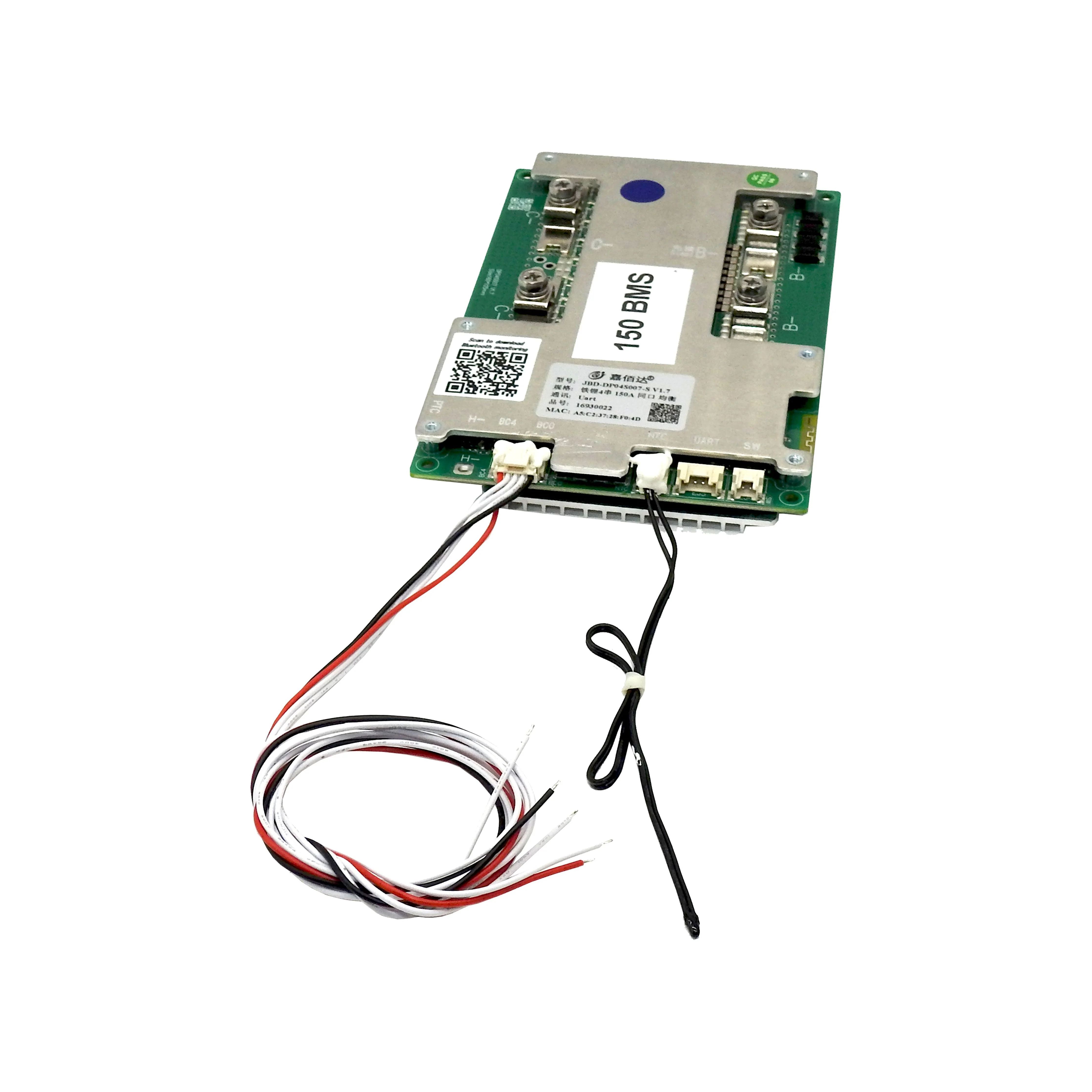

Replacement 4S 12V 150A BMS board with Bluetooth and Balance - Thumper APP

4S 12V 150A Bluetooth BMS LiFePO4 Australian Stock.

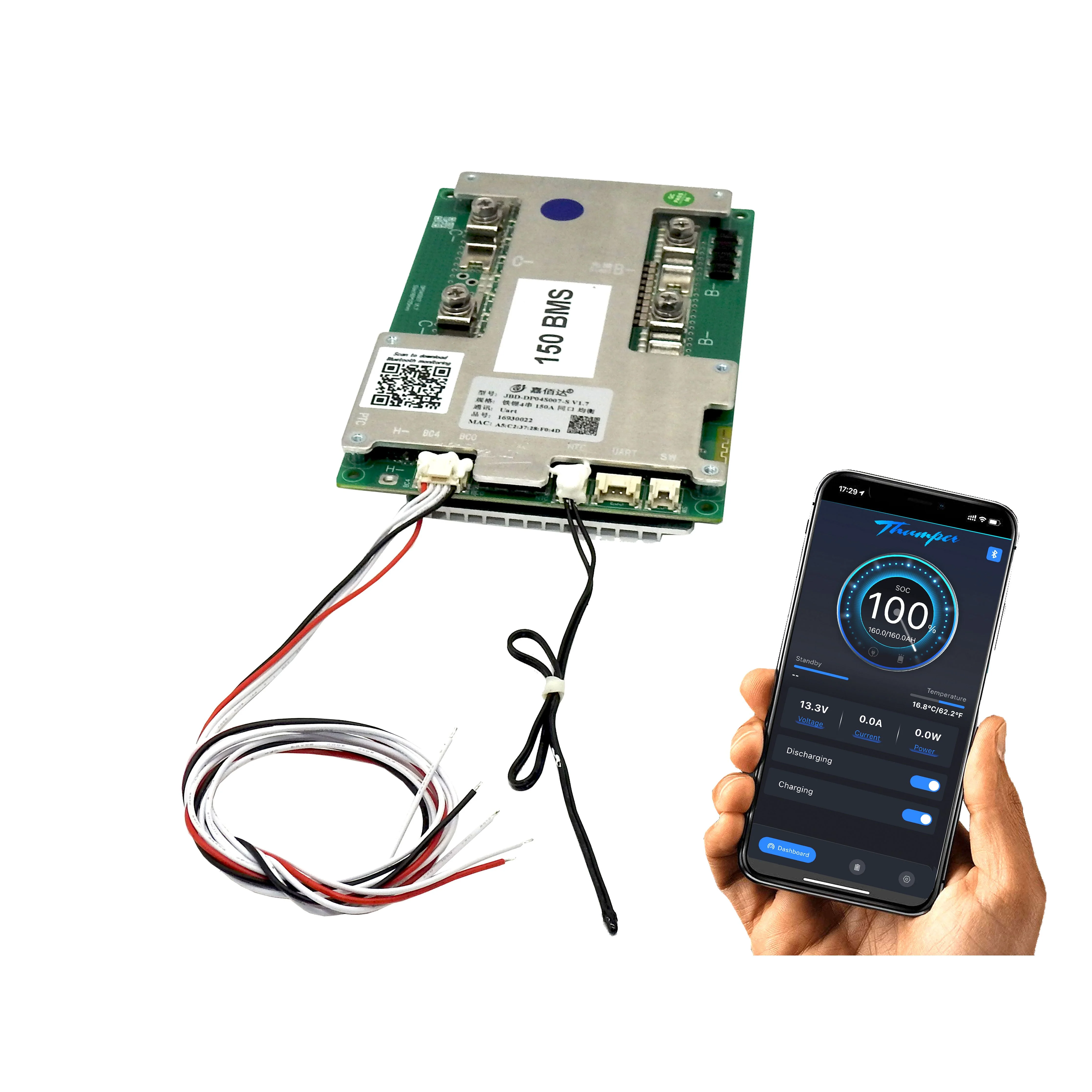

BLUETOOTH APP: Thumper Batteries

Suitable for batteries up to 400 AH capacity.

PARAMETERS

Cell specifications	4 string of Lithium Phosphate (LiFePO4)
Interface type	Charge and discharge are both at the same port
Charging voltage	14.4V
Working voltage	8.8~15.0V
Continuous charging current	≤150A
Continuous discharging current)	≤150A
Consumption of running	≤10mA
Consumption of sleep	≤800uA
Sleep conditions	Delay 65000s under no current \ communication \ protection state (settable)
Circuit resistance)	≤10mR
Operating temperature	-30℃~75℃
Discharge high temperature	90±5℃
Size	160±0.5mm * 105±0.5mm * 10±1mm

FUNCTIONS

1. Overcharge protection and recovery
2. Over-discharge protection and recovery

3. Charging overcurrent protection and recovery
4. Discharge overcurrent protection and recovery
5. Temperature Protection and Recovery
6. Balance function
7. Capacity calculation
8. Communication
