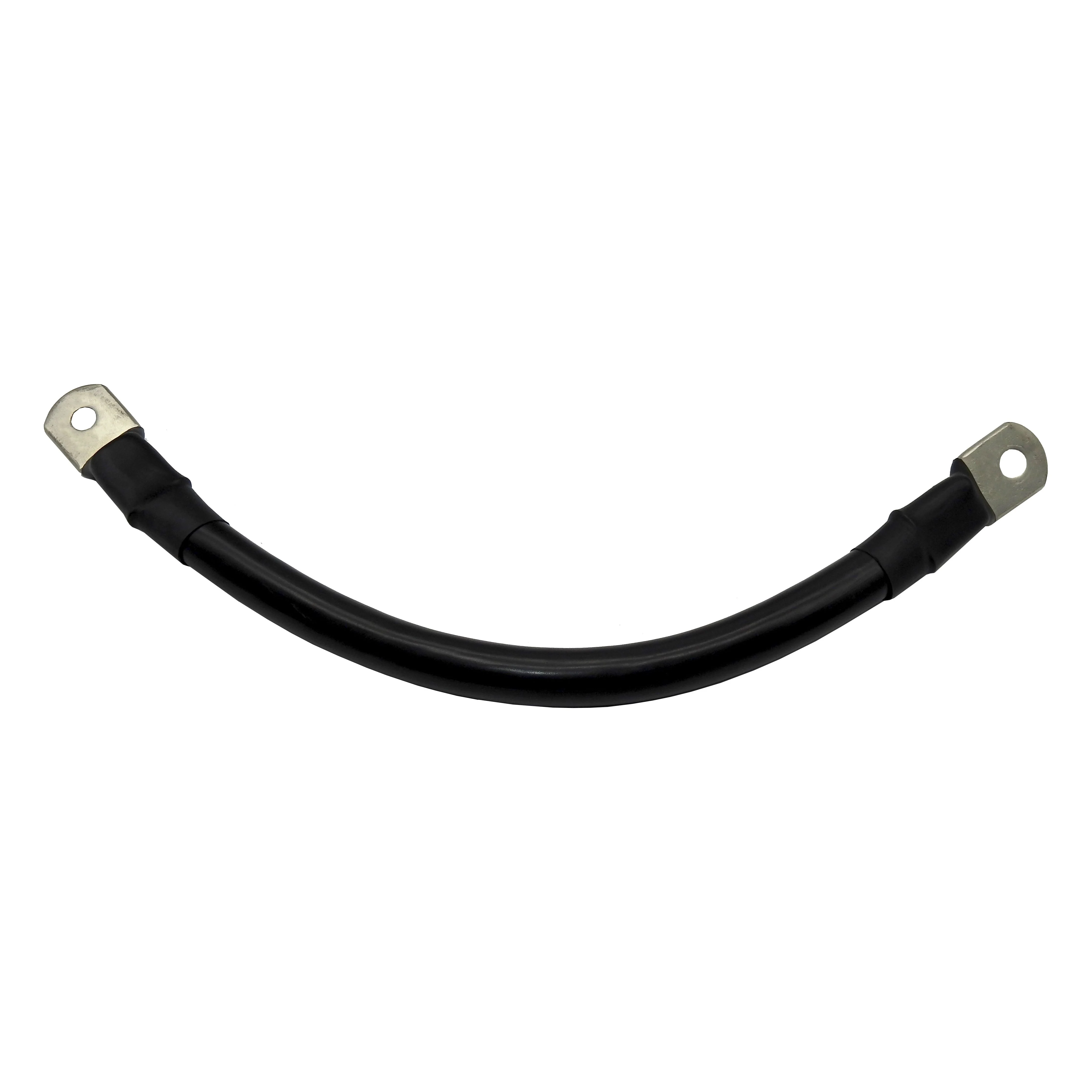

Negative Earth connecting Lead Black - Ideal for Battery Shunt connection
HomeStore

Negative Earth connecting Lead Black - Ideal for Battery Shunt connection

Negative Earth connecting Lead Black - Ideal for Battery Shunt connection

1 x Earth lead connecting lead (black lead only)

This lead ideal for connecting from a battery terminal (8mm eyelets) to a Shunt (10mm eyelet).Ā

Ideal for use with the PMSHUNT / BM500-BT / Victron Smart Shunt / Redarc BSEN500 Shunt.Ā

Available in multiple gauges to suit a wide range of load draws.Ā

Specifications:Ā
  • Fitted with 1 x 8mm lug for connection to battery
  • Fitted with 1 x 10mm lug for connection to smart Shunt
  • approx. 350-360mm in overall length* size will vary as cable is cut at approx. 350mm then lugs are added

Options:Ā

Cable GaugeĀ  B&S RatingĀ  Amp rating over 5mt
32mm cable Ā  Ā  2 B&S 190 Amps over 5mt continuous @ 30degrees
49mm cableĀ  Ā  Ā  0 B&S 246 Amps over 5mt continuous @ 30degrees
65mm cable Ā  00 B&S 292 Amps over 5mt continuous @ 30degrees
86mm cable 000 B&S 335 Amps over 5mt continuous @ 30degrees

Ā

Note: The above ratings are over 5mt distance. The cable can carry approx. 50% heavier loads over shorter distances.Ā

ALL cables are fitted with 8mm lug one end and 10mm lug on other endĀ

Select Cable Gauge
From $7.00

Original: $20.00

-65%
Negative Earth connecting Lead Black - Ideal for Battery Shunt connectionā€”

$20.00

$7.00

More Images

Negative Earth connecting Lead Black - Ideal for Battery Shunt connection - Image 2

Negative Earth connecting Lead Black - Ideal for Battery Shunt connection

1 x Earth lead connecting lead (black lead only)

This lead ideal for connecting from a battery terminal (8mm eyelets) to a Shunt (10mm eyelet).Ā

Ideal for use with the PMSHUNT / BM500-BT / Victron Smart Shunt / Redarc BSEN500 Shunt.Ā

Available in multiple gauges to suit a wide range of load draws.Ā

Specifications:Ā
  • Fitted with 1 x 8mm lug for connection to battery
  • Fitted with 1 x 10mm lug for connection to smart Shunt
  • approx. 350-360mm in overall length* size will vary as cable is cut at approx. 350mm then lugs are added

Options:Ā

Cable GaugeĀ  B&S RatingĀ  Amp rating over 5mt
32mm cable Ā  Ā  2 B&S 190 Amps over 5mt continuous @ 30degrees
49mm cableĀ  Ā  Ā  0 B&S 246 Amps over 5mt continuous @ 30degrees
65mm cable Ā  00 B&S 292 Amps over 5mt continuous @ 30degrees
86mm cable 000 B&S 335 Amps over 5mt continuous @ 30degrees

Ā

Note: The above ratings are over 5mt distance. The cable can carry approx. 50% heavier loads over shorter distances.Ā

ALL cables are fitted with 8mm lug one end and 10mm lug on other endĀ
