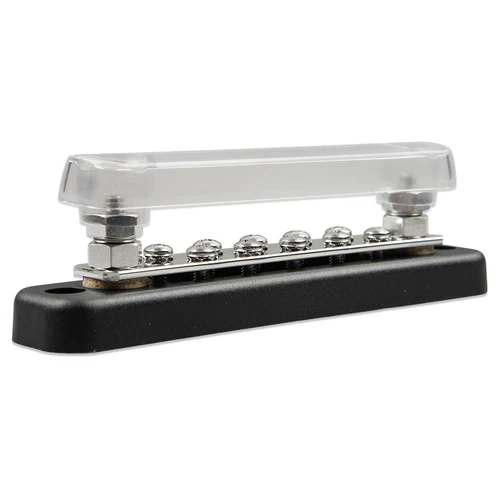

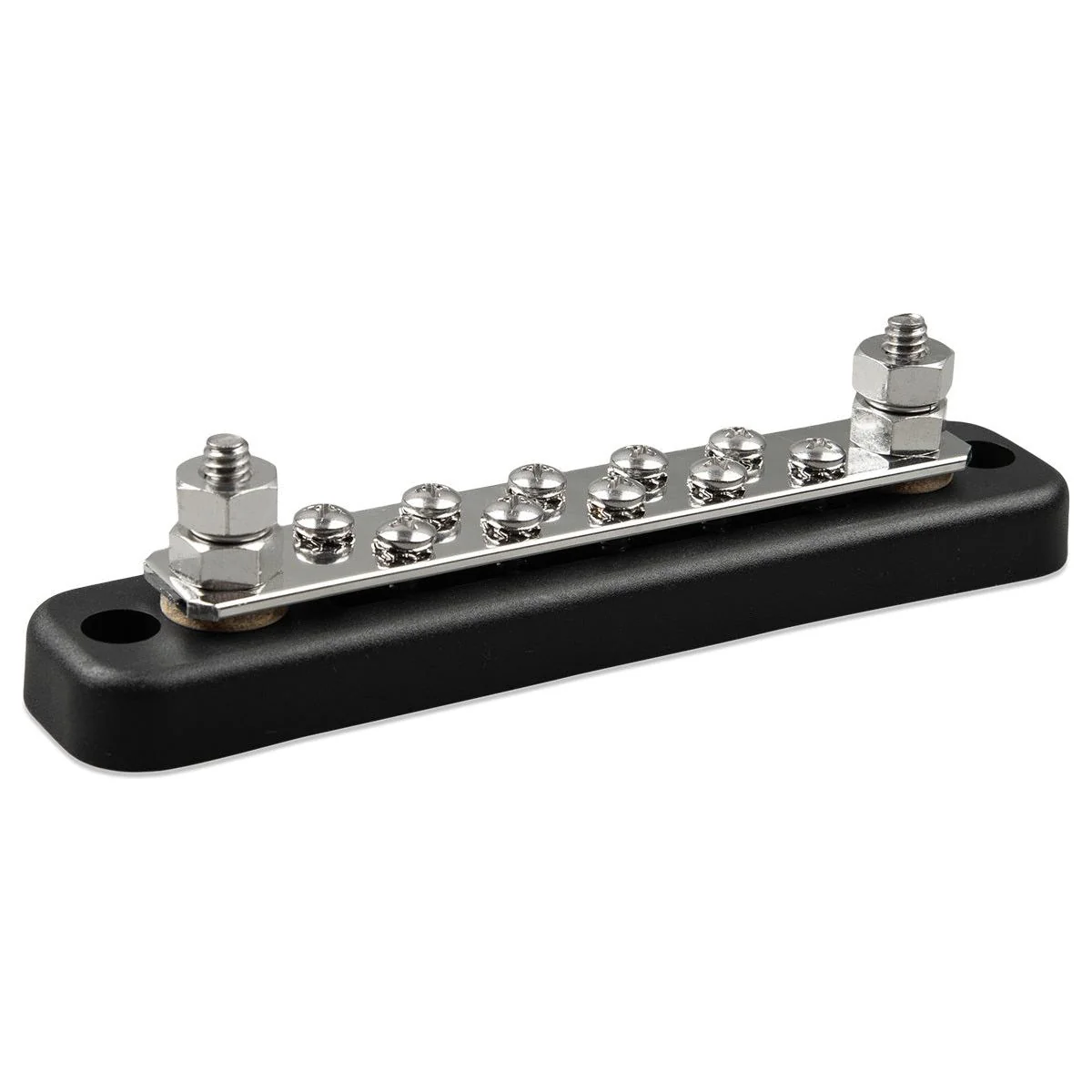

Victron Stainless Steel Busbar 150A 2 Pole 10x 8mm -32 Screw Terminals with Cover | VBB115021020
Victron Stainless Steel Busbar 150A 2 Pole 10x 8mm -32 Screw Terminals with Cover | VBB115021020
| Busbar 150A Â 2P with 10 Screws and Cover | |
| Max. current | 150 A |
| Max. Voltage | 70 VDC |
| Terminal diameter | ÂĽ inch / 6.35 mm |
| Terminal height | 0.67 inch / 17 mm |
| Terminal material | Stainless steel |
| Hex nut material | Tin-plated copper |
| Recommended torque | 60 lbf·inch / 7 N·m |
| Terminal screws | 8-32 / 4.2 mm |
| Terminal material | Stainless steel |
| Busbar strip material | Tin-plated copper (2.4 x 19 mm) |
| Base material | ABS, black, UL 94 V-0 |
| Cover material | Clear Polycarbonate, UL 94 HB |
| Weight, 4 terminals | 0,7 lb / 0,3 kg |
| Dimensions (hxwxd) (with cover) |
1.8 x 6.0 x 1.25 inch 45 x 152,4 x 32 mm |
$12.47
Original: $35.64
-65%Victron Stainless Steel Busbar 150A 2 Pole 10x 8mm -32 Screw Terminals with Cover | VBB115021020—
$35.64
$12.47More Images
Victron Stainless Steel Busbar 150A 2 Pole 10x 8mm -32 Screw Terminals with Cover | VBB115021020
| Busbar 150A Â 2P with 10 Screws and Cover | |
| Max. current | 150 A |
| Max. Voltage | 70 VDC |
| Terminal diameter | ÂĽ inch / 6.35 mm |
| Terminal height | 0.67 inch / 17 mm |
| Terminal material | Stainless steel |
| Hex nut material | Tin-plated copper |
| Recommended torque | 60 lbf·inch / 7 N·m |
| Terminal screws | 8-32 / 4.2 mm |
| Terminal material | Stainless steel |
| Busbar strip material | Tin-plated copper (2.4 x 19 mm) |
| Base material | ABS, black, UL 94 V-0 |
| Cover material | Clear Polycarbonate, UL 94 HB |
| Weight, 4 terminals | 0,7 lb / 0,3 kg |
| Dimensions (hxwxd) (with cover) |
1.8 x 6.0 x 1.25 inch 45 x 152,4 x 32 mm |
